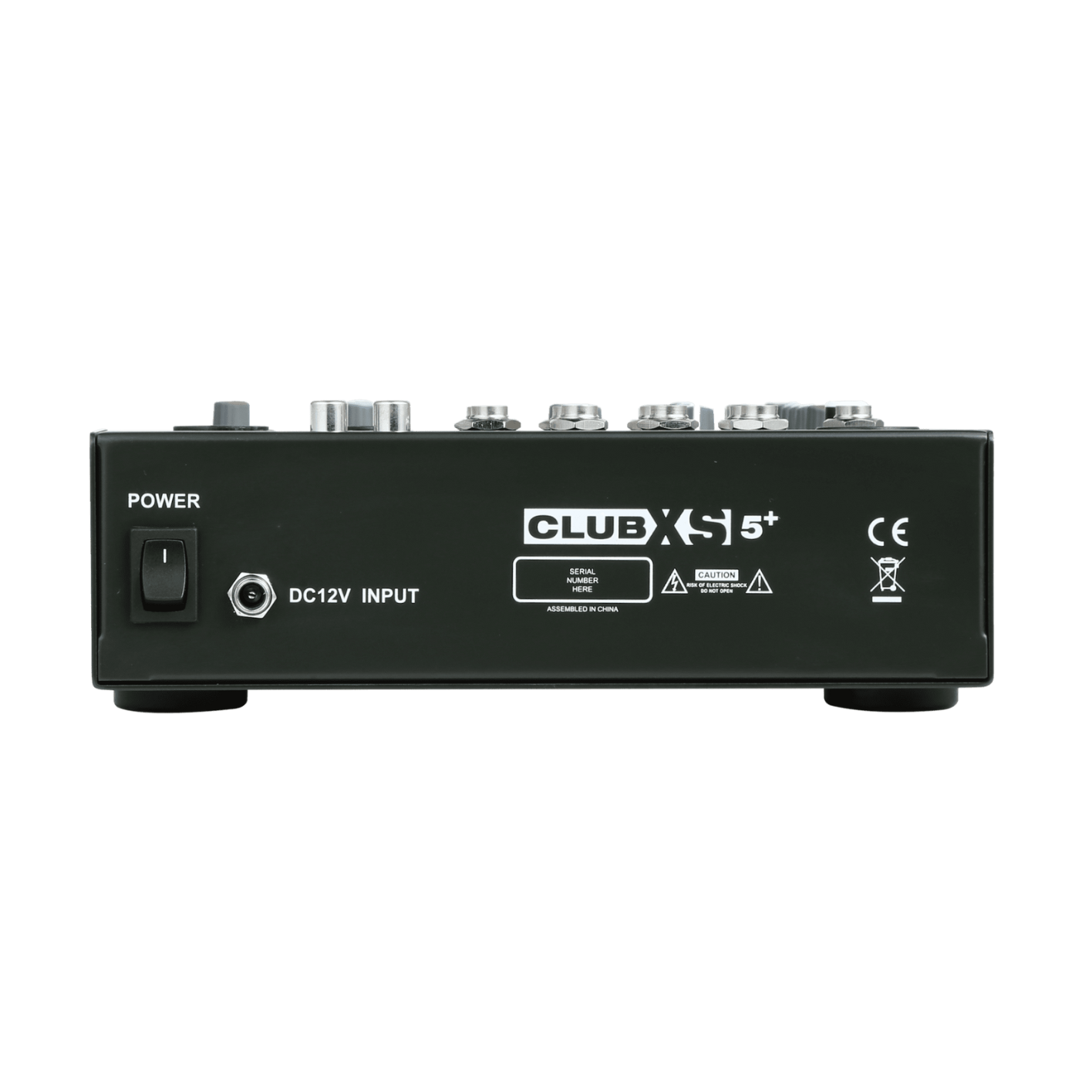

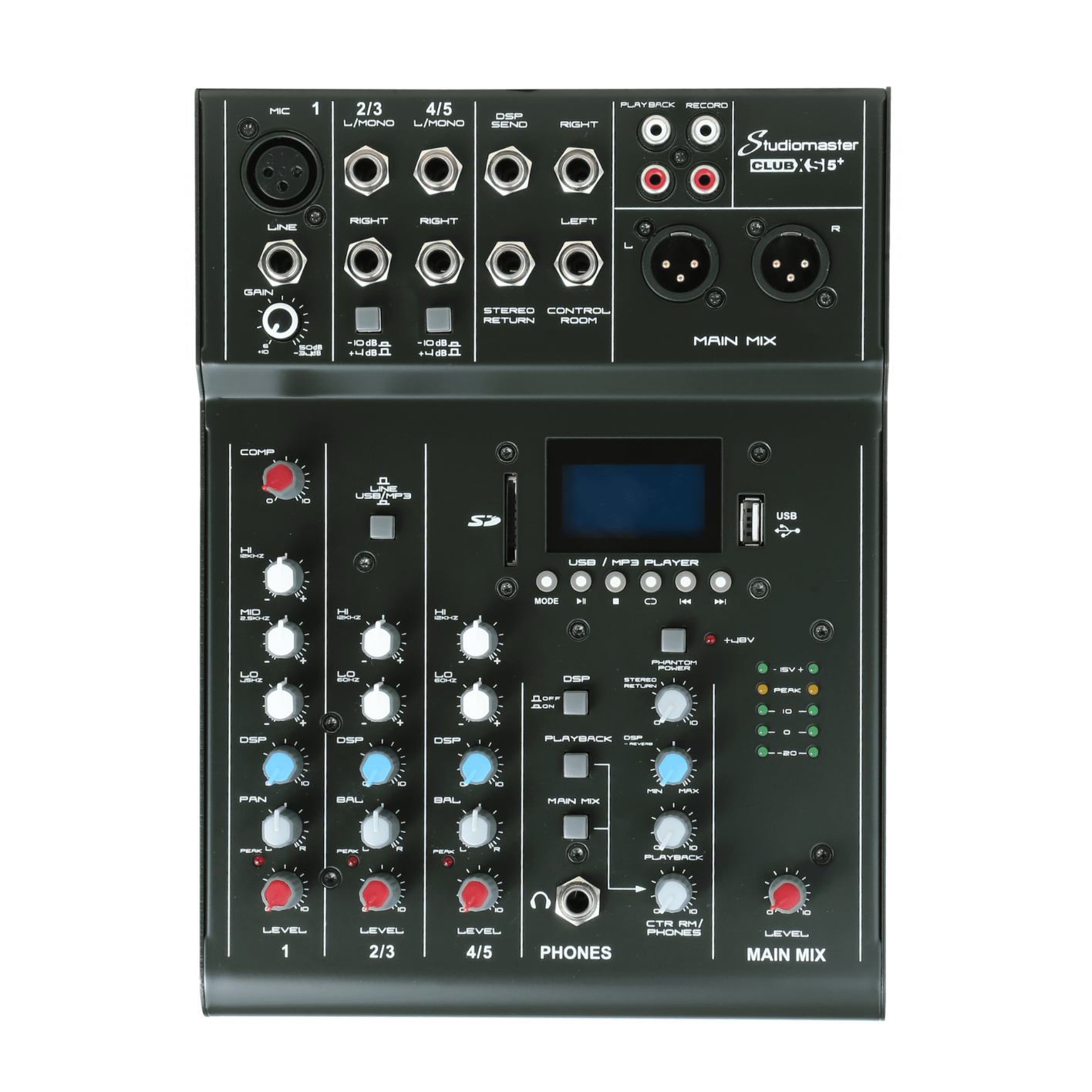

Studiomaster CLUB XS5+
MIXING AMPLIFIER | STUDIOMASTERThe Studiomaster CLUBXS+ series are a range of comprehensive and affordable compact, hard wearing mixing consoles. With all the features required for live mixing or stereo recording an event, duo or band whether at home, in the rehearsal rooms or out at an event.
The compact range is available in 5 to 16 input versions.
| Inputs | 5 | |
| Mic Input channels | 1 | |
| Stereo Input channels | 2 | |
| Gain | MIN ~ MAX | |
| Mic | 6dB ~ +50dB | |
| Line | +10dB ~ -34dB | |
| EIN | -100dB | |
| Frequency response | ||
| Mic Channel | 10Hz~20kHz+1/-3 | |
| THD Mic Channel | 0.1% | |
| Signal to noise ratio | 80dB | |
| Output Levels | MAX +26(BAL) / MAX +20(UNBAL) | |
| Channel EQ | ||
| Hi | 12kHz | |
| Mid | 2.5kHz | |
| Lo | 45Hz | |
| Lo Cut | 80Hz | |
| MP3/USB/SD Audio playback | YES | |
| USB/SD Audio recording | YES | |
| DSP Effects | YES | |
| Power requirements | 100V - 240V ~ | |
| Dimension (W x H x D) mm | 195 x 80 x 270 | |
| Weight | 3kg | |
