Studiomaster V310S

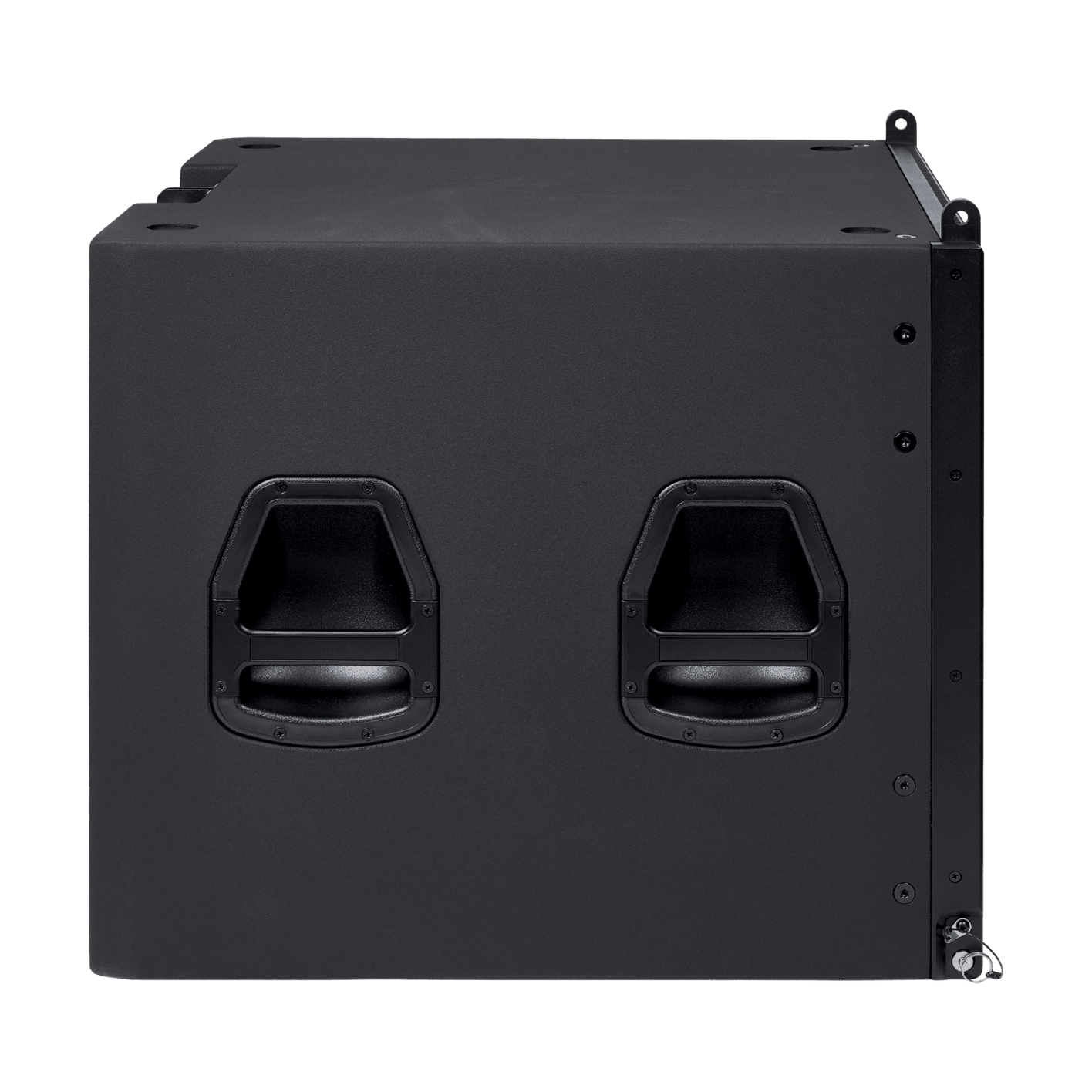

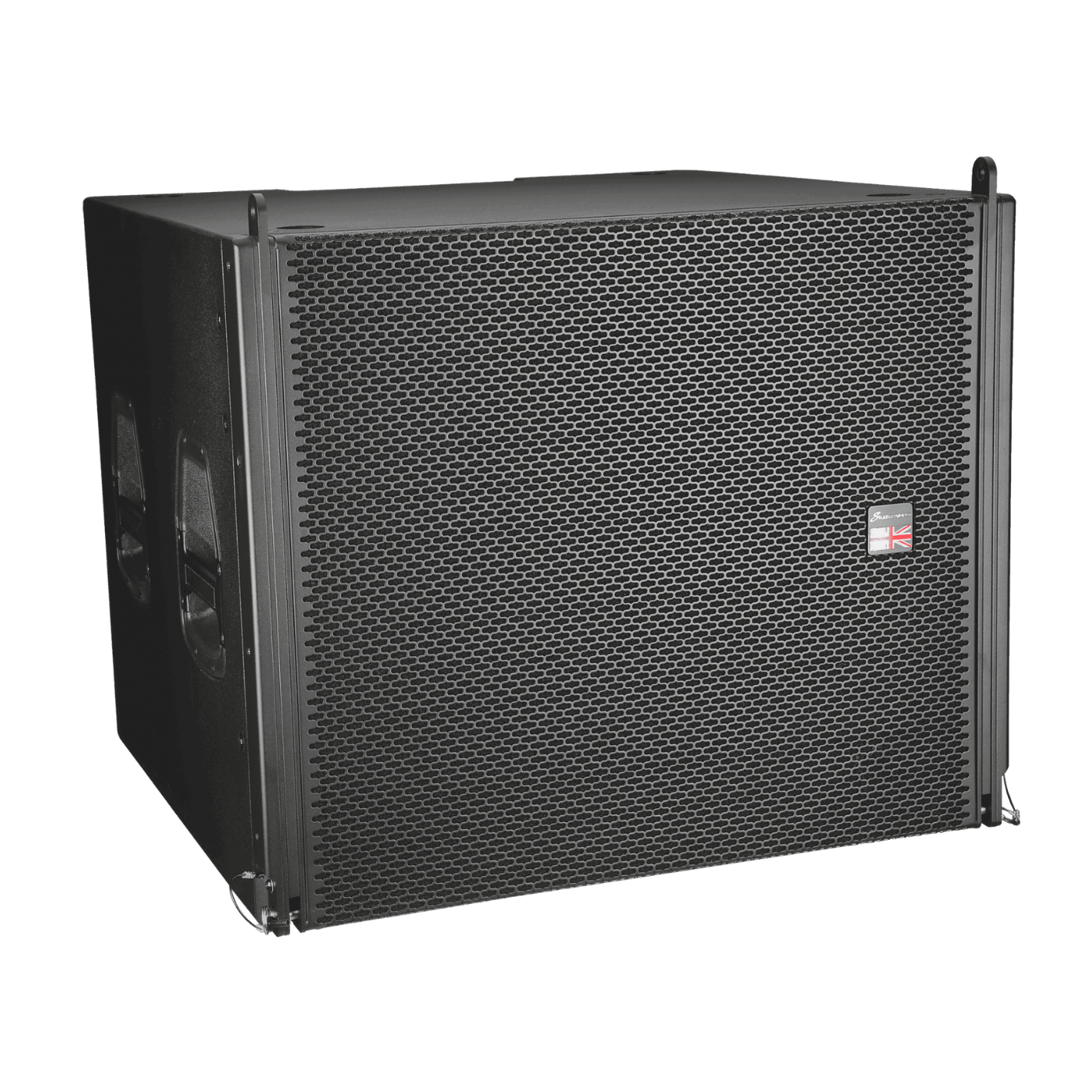

PROFESIONAL SPEAKER | STUDIOMASTERThe V310 system is a compact yet powerful 3-way line array solution designed to deliver high SPL levels up to 142dB from a lightweight enclosure only 706mm wide, making it ideal for smaller venues where larger 2-way 10″ systems are impractical. Featuring HF and MF sections with an internal crossover, the cabinet maintains standard LF and HF/MF 16-ohm inputs, allowing up to four enclosures to be connected in parallel to a single amp/processor. Complementing the top cabinets, the V310S subwoofer delivers up to 135dB SPL from a single 18″ phase-inverted long-throw driver, with double side handles for easy and safe transport.
| MAX SPL¹ | 135dB |
| PEAK² | 4000W |
| PGM | 2000W |
| RMS | 1000W |
| WEIGHT | 52kg |
| Cabinet type | passive line array woofer |
| Frequency response | 35Hz-180Hz (-10dB) |
| Coverage (H × V) | - |
| Sensitivity (1W@1m) | 99dB |
| Crossover frequency | - |
| LF Driver | 1 × 18" ferrite / 100mm VC |
| MF Driver | - |
| HF Driver | - |
| Impedance | 8 ohm |
| Vertical spread angle | - |
| Dimensions (W × H × D) | 706 × 580 × 680mm |
